High Strain Rate Compression Testing

Polymers are frequently required to endure impact events with strain rates exceeding 100/s.  There is frequently little information available on the rate-dependent mechanical behavior of a material, especially at intermediate to high strain rates from 5/s to 10,000/s.

Veryst Engineering has developed a comprehensive suite of services for testing, modeling, and validating the high strain rate behavior of polymers.  Veryst’s high strain rate testing and modeling capabilities are suitable for all classes of polymers:

• Thermoplastics (PEEK, PC, ABS, etc.)
• Thermosets
• Elastomers/rubbers
• Thermoplastic elastomers (TPE, TPV, TPU, etc.)
• Foams (open or closed-cell)
• Adhesives
• Biomaterials

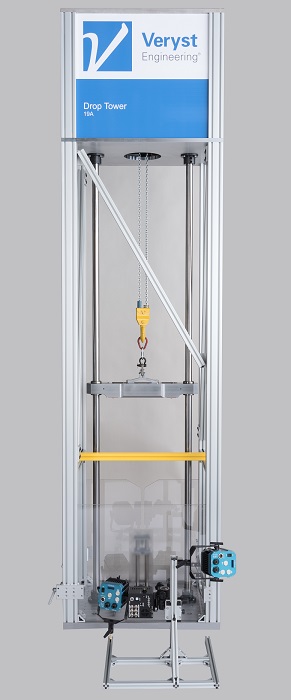

Veryst has developed custom test machines for testing the compressive response of polymers, including our drop tower and thin film test machine.  The drop tower is capable of testing all polymers in compression up to 2500/s.  Veryst has used the drop tower to test hundreds of materials, including thermoplastics and thermosets, elastomers, natural rubbers, foams, and adhesives.  Veryst has also used the Split Hopkinson Pressure Bar (SHPB) to test materials at high strain rates in compression.

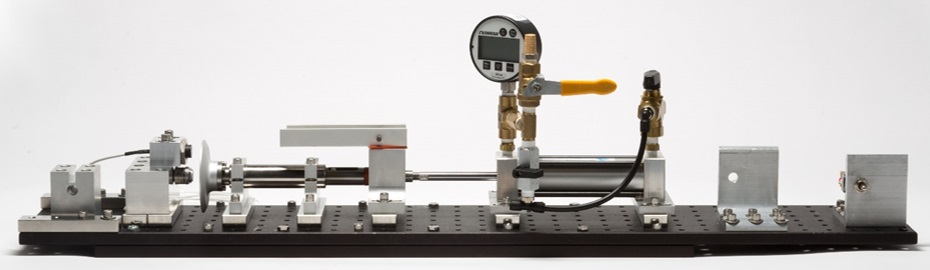

Veryst developed the thin film test machine to measure the rate dependent behavior of soft materials at rates over 10,000/s.  We use precise displacement sensors and load cells to measure materials as thin as 100 µm.  The image below shows the thin film test machine ready for a compression test.

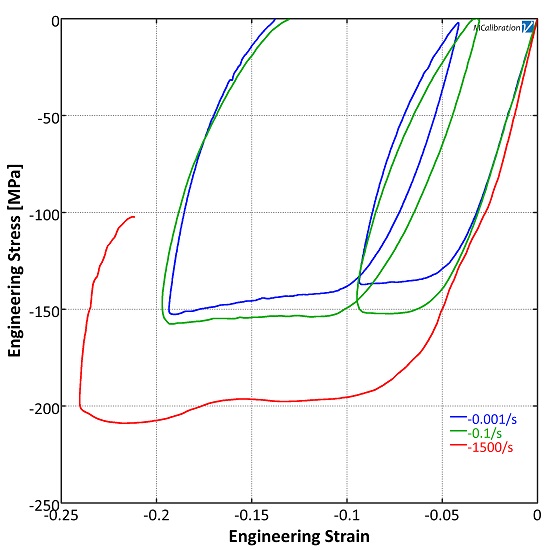

Veryst can test the tensile and compressive behavior of a wide variety of polymeric materials over strain rates ranging from 10^-3 – 10⁴/s combining traditional test techniques with advanced, high strain rate techniques.

Veryst calibrates rate-, temperature-, and time-dependent material models using advanced methods to ensure material model accuracy. We routinely calibrate material models for Abaqus, ANSYS, LS-DYNA, COMSOL, and RADIOSS.

For a customized quotation, please write to us at testing@veryst.com.
